Technical Guide
The Ultimate Engineering Guide to Pressure-Sensitive Adhesive (PSA) Formulations
Prevent label lift, oozing, and applicator downtime. Master the viscoelastic science behind choosing the perfect pressure-sensitive adhesive for your industrial packaging applications.
Table of Contents
- 1. What is a Pressure-Sensitive Adhesive?
- 2. The 3 KPIs: Tack, Peel, and Shear
- 3. Acrylic vs. Rubber vs. Silicone
- 4. Industrial Applications
- 5. Expert Conclusion & Specification

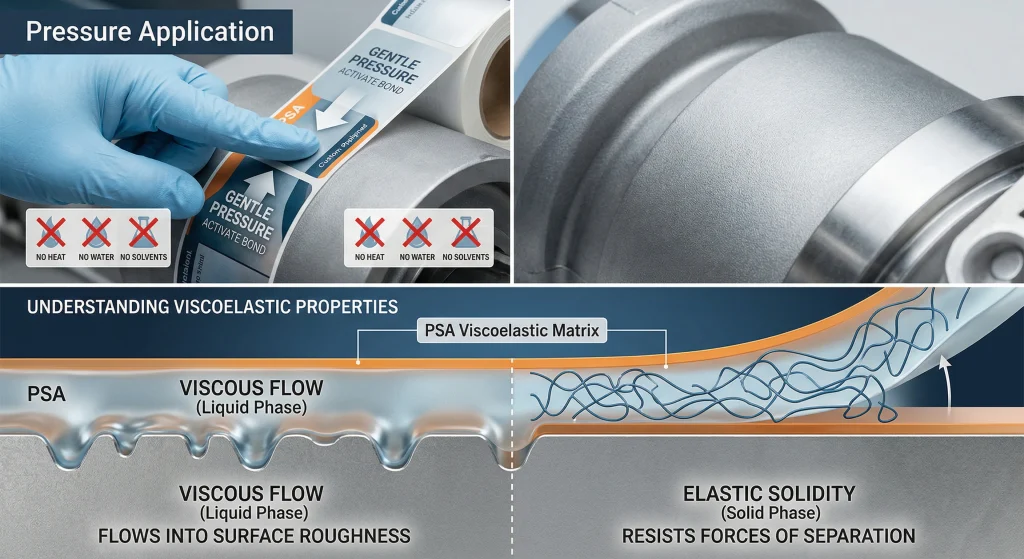

What is a Pressure-Sensitive Adhesive (PSA)?
A pressure-sensitive adhesive (PSA) is a type of non-reactive adhesive that forms a bond when light pressure is applied to marry the adhesive with the adherend (the surface). Unlike other adhesives, a PSA does not require a solvent, water, or heat to activate.
Understanding adhesives is only part of the equation. Learn how Facestocks and Liners work together in our comprehensive breakdown: The Ultimate Guide to Self-Adhesive Packaging Materials: Adhesives, Liners & Facestocks ➔

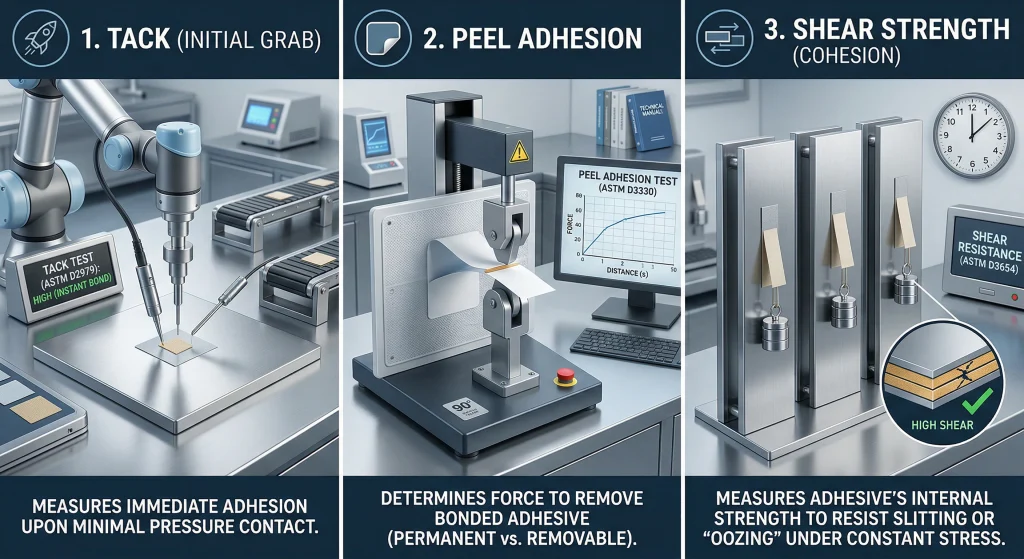

The 3 Critical KPIs of Any Pressure-Sensitive Adhesive
- Tack (Initial Grab): How quickly the adhesive forms a bond immediately upon contact with minimum pressure. Crucial for high-speed automated labeling lines.
- Peel Adhesion: The force required to remove the PSA from the surface after the bond has set. This determines if a label is “permanent” or “removable.”
- Shear Strength (Cohesion): The internal strength of the adhesive itself. High shear strength prevents the adhesive from splitting or “oozing” out from the edges of the label under continuous stress.
Comparing PSA Types: Acrylic vs. Rubber vs. Silicone
Not all pressure-sensitive adhesives are created equal. Choosing the wrong chemical base can lead to catastrophic packaging failures, such as labels falling off in cold storage or discoloring under UV light.
| Adhesive Base | Core Advantage | Best Environment & Application |
|---|---|---|
| Rubber-Based | Highest Initial Tack | Best for rough surfaces (HDPE, Cardboard). Poor UV and high-heat resistance. Ideal for indoor logistics labels. |
| Acrylic (Solvent/Water) | Excellent Durability | Superior UV, chemical, and temperature resistance (-20°C to 150°C). Perfect for durable outdoor and cold-chain packaging. |
| Silicone-Based | Extreme Temperatures | Can withstand extreme heat (up to 260°C). Highly specialized and expensive; used in electronics and PCB manufacturing. |
Industrial Applications of PSAs
Because a pressure-sensitive adhesive bonds instantly without curing time, it is the backbone of the modern packaging industry. Common applications include:
- Prime Labels: High-quality branding labels for cosmetics and beverages.
- Variable Information Printing (VIP): Barcodes and shipping labels requiring aggressive rubber-based PSAs.
- Security & Tamper-Evident: Engineered with ultra-high peel adhesion to destroy the facestock if removal is attempted.
Expert Conclusion & Specification
In conclusion, specifying the correct pressure-sensitive adhesive is just as critical as choosing your facestock or release liner. A mismatch between surface energy, environmental conditions, and adhesive chemistry will inevitably cause automated applicator jams or product presentation failures.
